| Articulated Tube Support | Model No. | A | B | C | D | Remark | Surface Finish: Satin / Mirror Material: SUS304/316 Stainless Steel |
| A4428 | 38.1 | 61 | 14 | Flat | Could fit 1.2-2.0mm thickness tube. | ||
| A4405 | 38.1 | 61 | 14 | 38.1 | |||
| A4429 | 38.1 | 61 | 14 | 42.4 | |||
| A4406 | 38.1 | 61 | 14 | 50.8 | |||
| A4430 | 42.4 | 69 | 14 | Flat | |||
| A4462 | 42.4 | 69 | 14 | 38.1 | |||
| A4460 | 42.4 | 69 | 14 | 42.4 | |||
| A4461 | 42.4 | 69 | 14 | 50.8 | |||
| A4431 | 50.8 | 74.5 | 16 | Flat | |||
| A4408 | 50.8 | 74.5 | 16 | 38.1 | |||
| A4432 | 50.8 | 74.5 | 16 | 42.4 | |||
| A4407 | 50.8 | 74.5 | 16 | 50.8 |

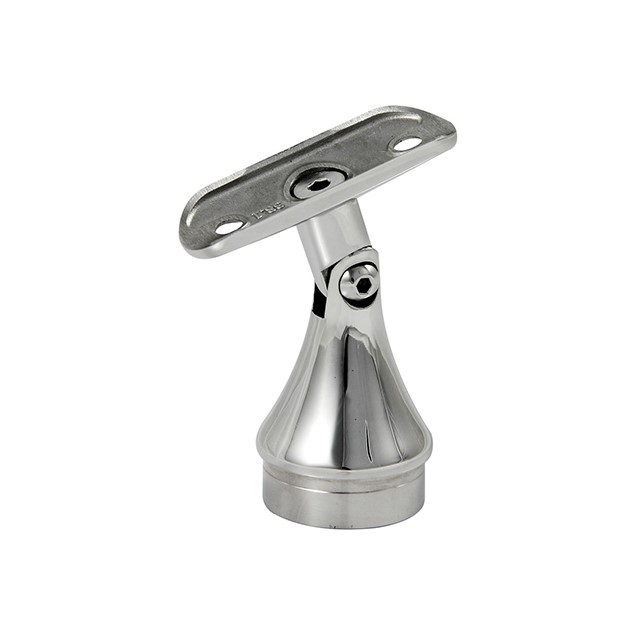

A stainless steel articulated pipe tube support is a component used in various piping systems to provide support and stability to pipes or tubes. It is typically used in applications where pipes or tubes need to be securely held in place while allowing for movement or flexibility.
The articulated pipe tube support is made of stainless steel, which offers excellent strength and corrosion resistance. It consists of a series of interconnected links or joints that allow for articulation or movement. This design enables the support to accommodate thermal expansion, vibration, or other dynamic forces that may occur within the piping system.
The support is usually mounted onto a structure, such as a wall, ceiling, or floor, using fasteners or brackets. The pipe or tube is then inserted into the support, and the articulated joints allow for axial, lateral, or angular movement while still providing stability and support.
